Overview

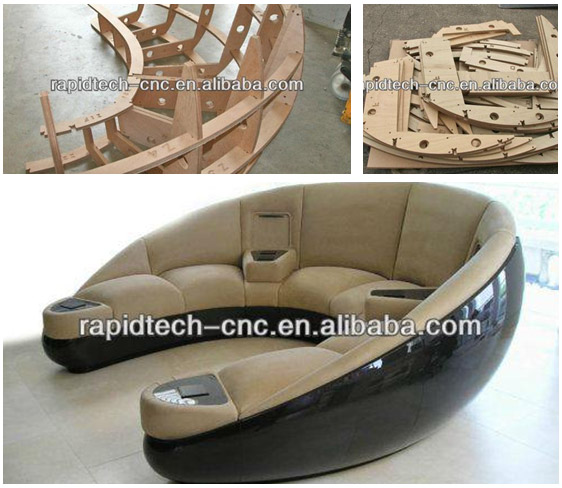

This machine is designed for sofa framework making, machine can cut though 3 panels one time.

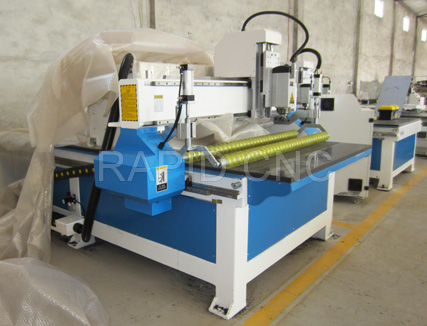

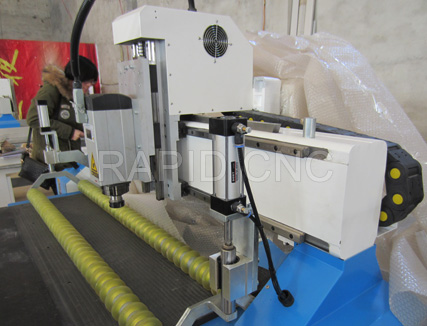

Roller Hold Down routers provide the ulimate flexibility in routing single sheet, stacked sheet, small part, large part, rollers engaged or disengaged, giving you the capability of multiple CNC machines for the cost and footprint of one. This machine features 2 rollers on each side of the cutting spindle(s), automatically extending & retracting rollers as they roll off the cutting table, for holding down warped sheet stock or stacked sheet routing. Each roller's pressure can be regulated to prevent premature wear due to slamming rollers into the table & material. Additionally, the roller hold down design assists in the ability to machine narrow, low surface area, partsthis new hold down fixturing system allows sheets to be stacked so that two or more sheets can be routed simultaneously thus increasing productivity.
Advantage
1. Double working position is designed for uninterrupted operation cycle.
One working position is for working on panel, the other working position is for loading or unloading finished panel

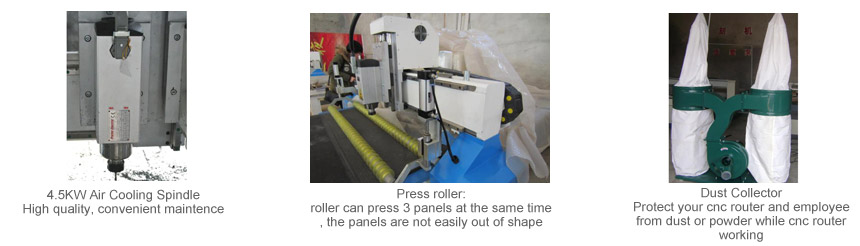

2. sing press rollers instead of vacuum working table
Saving power because you do not need to use vacuum pump.

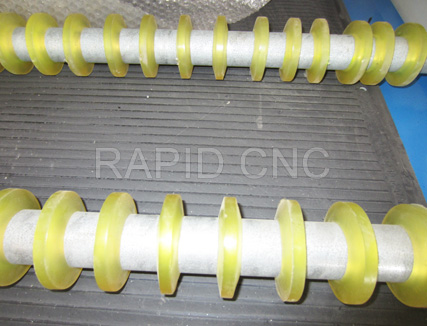

3. And roller can press 3 panels at the same time, the panels are not easily out of shape. Machine can cut 3 panels one time.
Application
furniture (solid wood and upholstered), custom windows and doors, cabinets, exhibits and store fixtures, and many other types of wood projects

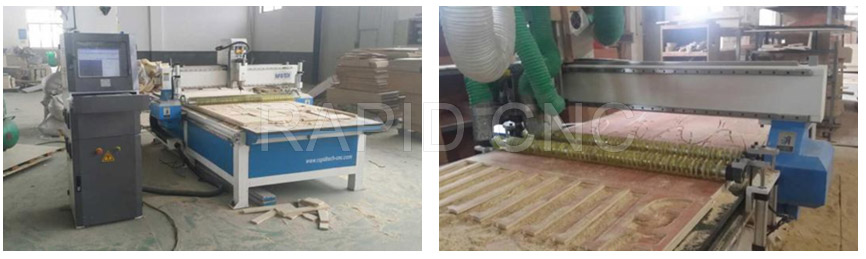

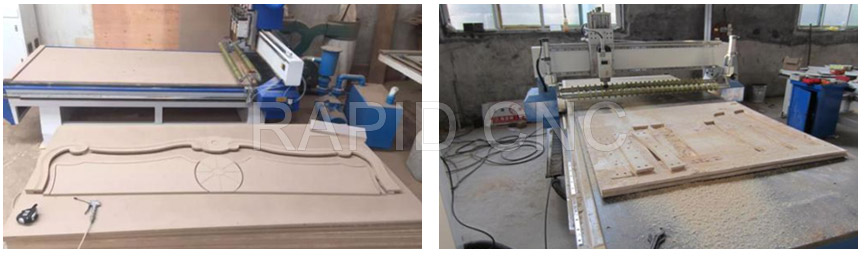

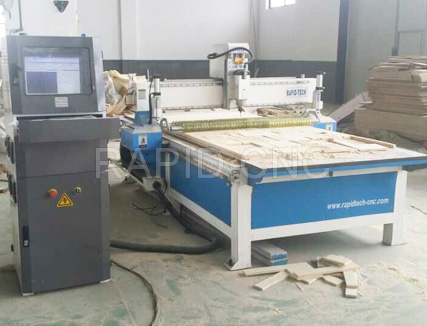

Machine in Client’s Factory
