Overview

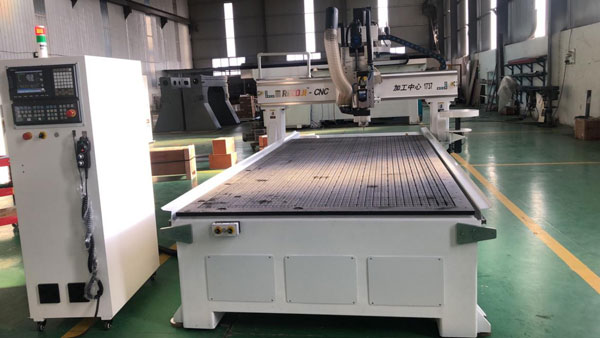

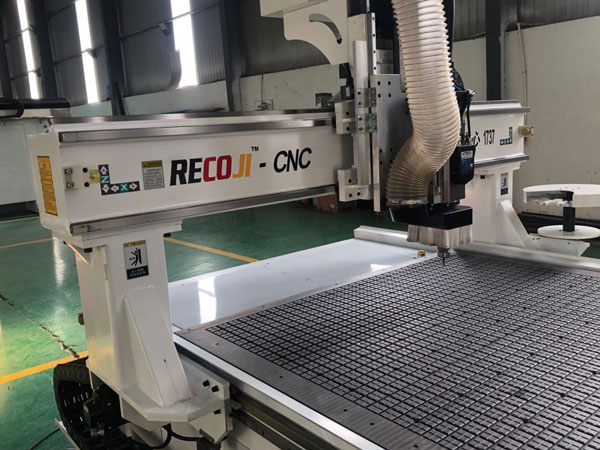

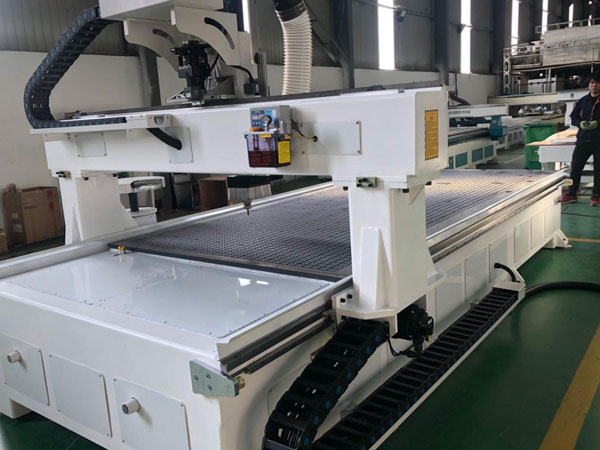

RD-1325 Carousel type ATC CNC router is an high power CNC machine center with affordable price.
It's ideal for aiming to automate their production processes.
The Automatic Tool Changer reduces the time a project must remain on the machine by automatically changing cutting bits between cuts, thus eliminating the need for the CNC operator to change and calibrate tools by hand.
Advantage

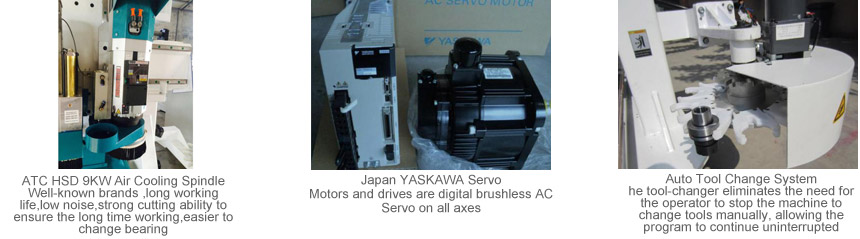

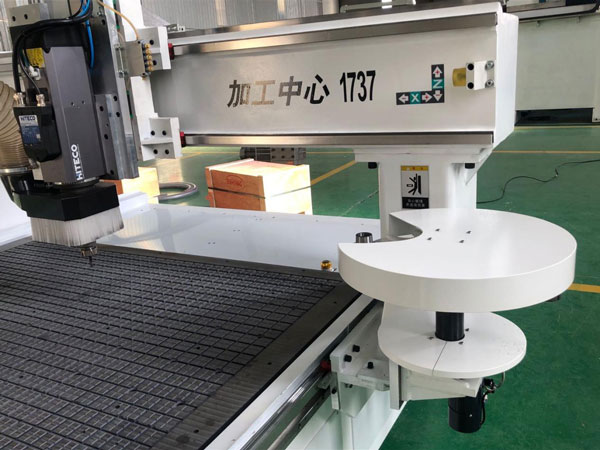

1. Carousel type ATC with 10 position:
The ATC allows the machine to cut complete projects where different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings without stopping to manually change bits.
2. 9kw(12HP) large power air cooling spindle is come from Italy HSD company.
The programmable speed can up to 24000RPM

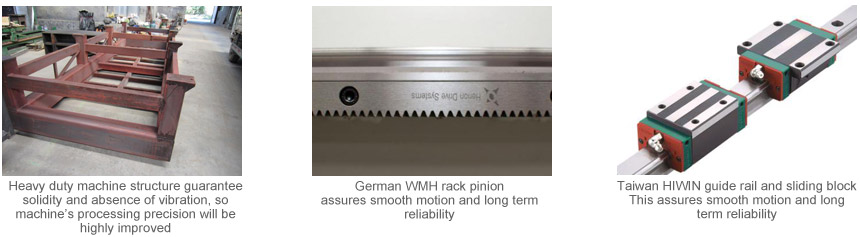

3. Heavy duty machine structure guarantee solidity and absence of vibration, so machine’s processing precision will be highly improved.
4. Japanese AC servo motors and drives .
The closed-loop control of position, speed and torque is realized, improving precision.
Rotated speed can up to 3000RPM, good high speed performance
Heat and noise significantly reduced.
Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly.
Applicable material and industry
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

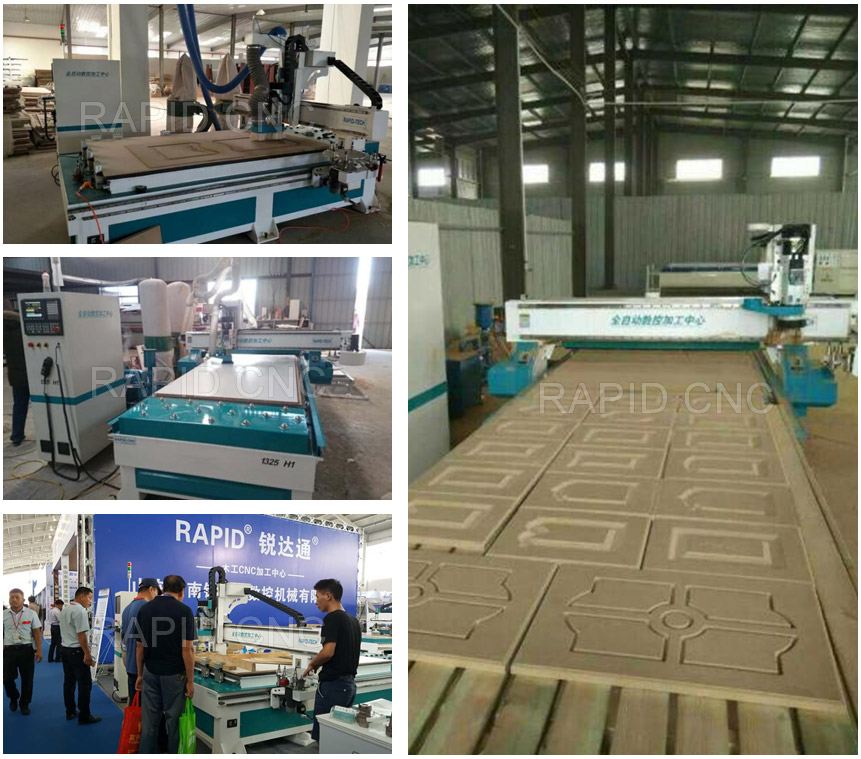

Machine in client factory
