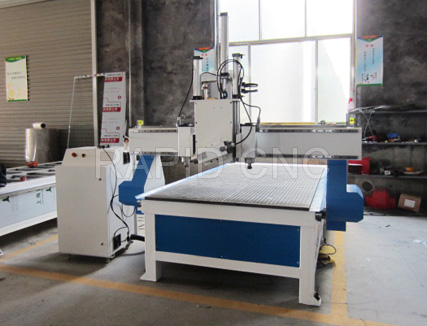

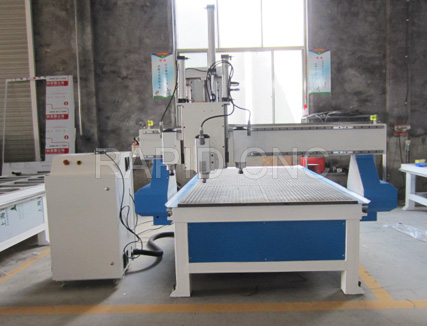

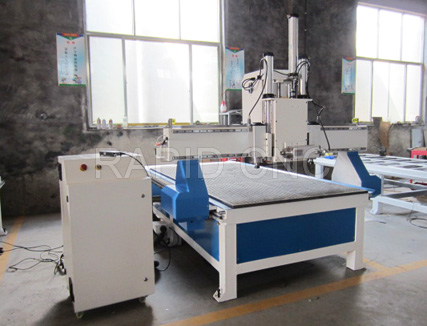

RD-1325 ATC CNC Router With Bidirectional Spindle

This machine has three connected air cooling spindles, two vertical spindles and one bidirectional spindle , use pneumatic power as driven force, three spindles can work alternately.
Bidirectional spindle can do side drilling and side slotting.
It is usually applied in wood door furniture industry for a series of complicated processing including cutting, carving, drilling, edge milling and hollow-out engraving.
multi-process cnc router machine is qualified for mass-producing of furniture. It's the most popular machine especially for furniture factory, because it has three spindles driven by one motor, which could complete complex processing in avoid of inconveniences of tool changing. However, the price of it is far much lower than ATC cnc router machine.

  • Overview
  • Configuration
  • Video
  • Samples
  • Overview

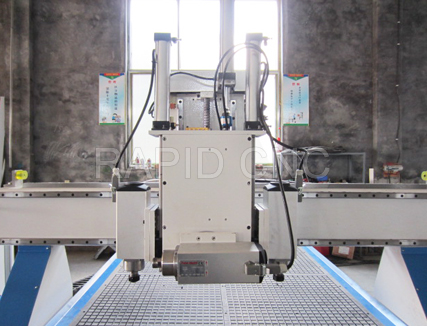

    This machine has three connected air cooling spindles, two vertical spindles and one bidirectional spindle , use pneumatic power as driven force, three spindles can work alternately.
    Bidirectional spindle can do side drilling and side slotting.

    It is usually applied in wood door furniture industry for a series of complicated processing including cutting, carving, drilling, edge milling and hollow-out engraving.

    multi-process cnc router machine is qualified for mass-producing of furniture. It's the most popular machine especially for furniture factory, because it has three spindles driven by one motor, which could complete complex processing in avoid of inconveniences of tool changing. However, the price of it is far much lower than ATC cnc router machine.

    Advantage
    1. Middle spindle can rotated 90 degree for lock hole, hinge,etc

    2. Economic multifunctional ATC CNC Router, three spindles can work alternately.
    Rapid switch between the three heads automatically for different applications helps to save your precious time and enhance flexibility and value.

    3. Adopt DSP system
    Easy to learn, and operate by a hand-held controller

    Application industry
    This machine is mainly used in furniture making industry, furniture decoration industry, wood craft industry, wood decoration industry and automotive tooling industry

    Application material
    Wood, solid wood, particle board, acrylic, plexiglass, MDF, plastic, copper, aluminum, etc
