Overview
This machine is economic ATC CNC router for nest cutting, drilling, carving and slotting. It is designed for processing cabinet, wardrobe, closet,etc
And double working position ensures processing without interruption, which will highly improve your working efficiency.
Adopt pneumatic tool changing type, 2 different tools will work alternately.

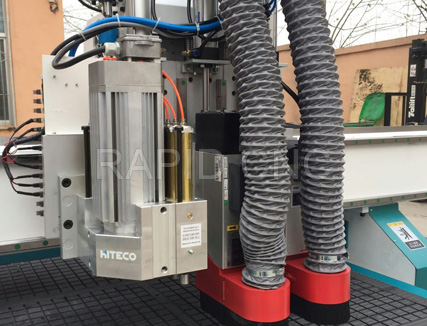

Italy high power boring unit is professional use for drill holes on panel, machine’s re-positioning precision accuracy is ±0.003mm, additional use of professional optimize software, like cabinet vision, holes will be generated accurately, and enhance the utilization of the plate.
Advantage

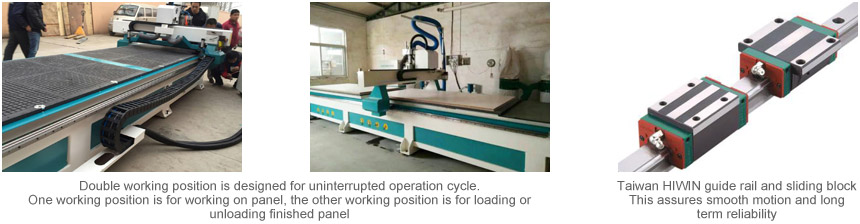

1.Double working position is designed for uninterrupted operation cycle.
One working position is for working on panel, the other working position is for loading or unloading finished panel
2.two spindles, which can change 2 different tools automatically. This type machine is new design economic atc cnc machine, save working time cost and investment for you and brings you with high efficiency

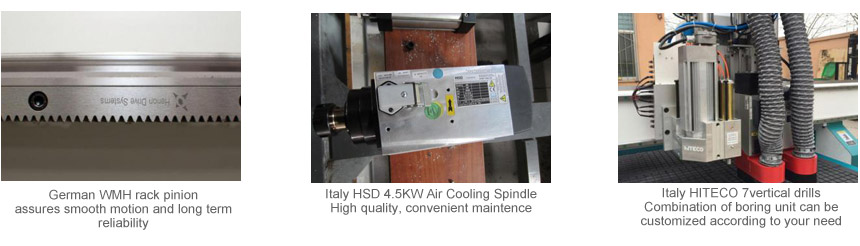

3.With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting and lock hole making and expanding for the wooden door panels with complicated processing requirement
4.Machine is match with output optimize software, like cabinet vision, holes will be generated accurately, and enhance the utilization of the plate.
Applicable material
acrylics, artificial stones, woods, bamboos, organic boards, double-color board, PVC, aluminum, brass and others

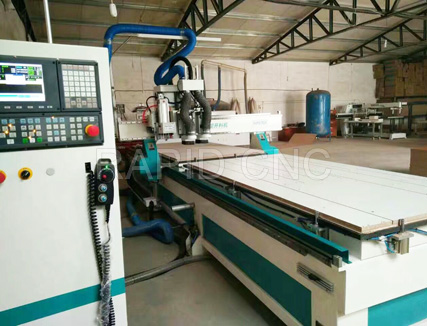

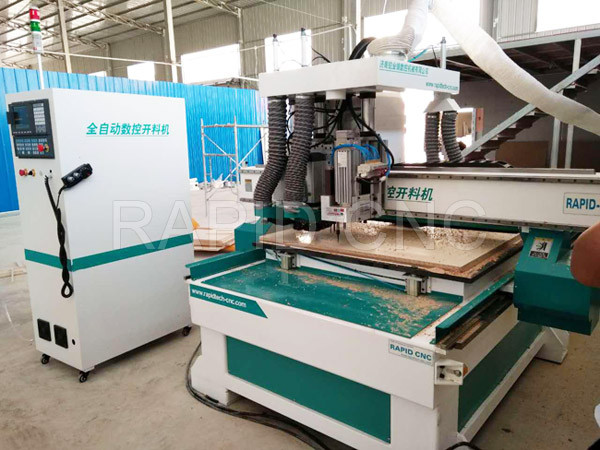

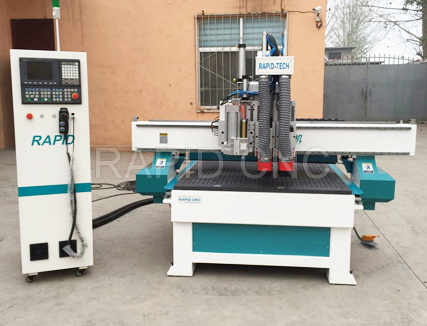

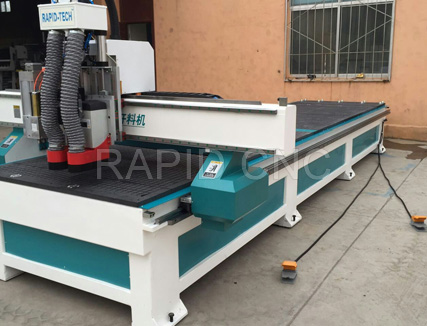

Machine in Client’s factory
