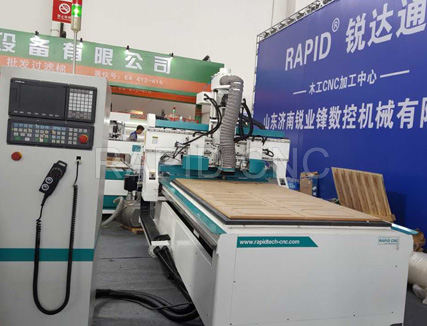

RD-1325 CNC Router With Ball Screw

This machine comes with 3 axis full ball screw transmission, machine’s working precision is higher than machine with rack transmission.
Complex carving can be allowed for because of double tool magazine is available
This machine is designed for manufacturing solid wood door, solid wood furniture, panel furniture, and it can be drilled , carved, cut, hollowed, chamfered,etc

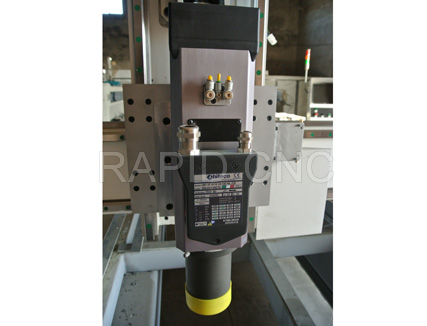

Using world-class components, e.g. HSD 9kw ATC spindle, Japan YASKAWA servo motor driving system, Japan SHIMPO gear reducer, Schneider low voltage electrical components, DELTA INVERTER—guaranteeing optimum performance and minimum failure.

  • Overview
  • Configuration
  • Video
  • Samples
  • Overview
    This machine comes with 3 axis full ball screw transmission, machine’s working precision is higher than machine with rack transmission.
    Complex carving can be allowed for because of double tool magazine is available.
    This machine is designed for manufacturing solid wood door, solid wood furniture, panel furniture, and it can be drilled , carved, cut, hollowed, chamfered,etc
    Using world-class components, e.g. HSD 9kw ATC spindle, Japan YASKAWA servo motor driving system, Japan SHIMPO gear reducer, Schneider low voltage electrical components, DELTA INVERTER—guaranteeing optimum performance and minimum failure.

    Advantage
    1.The transmission of X, Y and Z axis is ball screw, with higher precision, better for sophisticated works.
    2.Heavy duty machine structure guarantee solidity and absence of vibration, and machine base have been tempered, which will improve ductility and toughness, machine base not easily deformed, so machine’s processing precision will be highly improved.
    3.Versatile functions: routing, drilling, cutting, side-milling, edge chamfer, etc.
    4.Three axis adopt imported high precision grinding of ball screw, with THK linear guide rail, make the machine run more smoothly, in high speed movement, even if changing speed, can avoid from concussion.

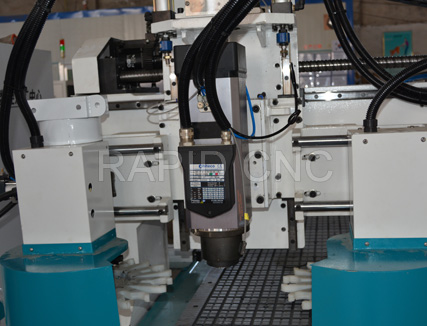

    5. The 20 tool rotary carousel allows CNC Router to complete highly complex jobs with multiple tools with no user interaction.

    Application industry
    Furniture industry: solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden speaker and kitchenware, etc. It also can process automobile mould and non-metalic mould.

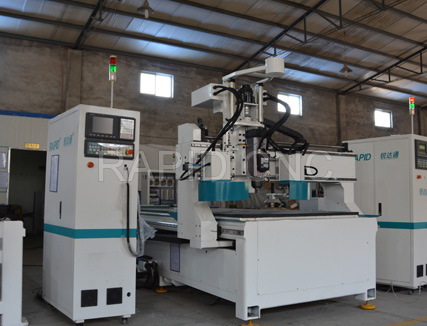

    Machine in client’s factory
