Overview

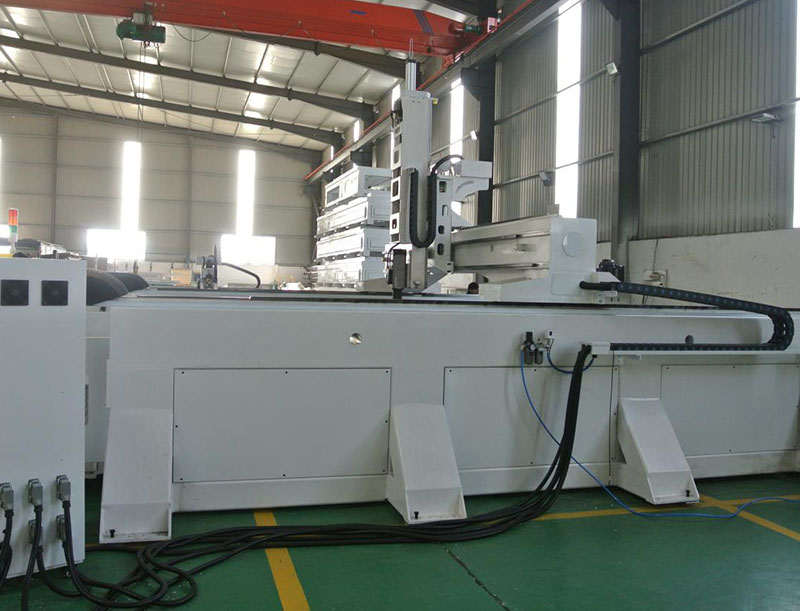

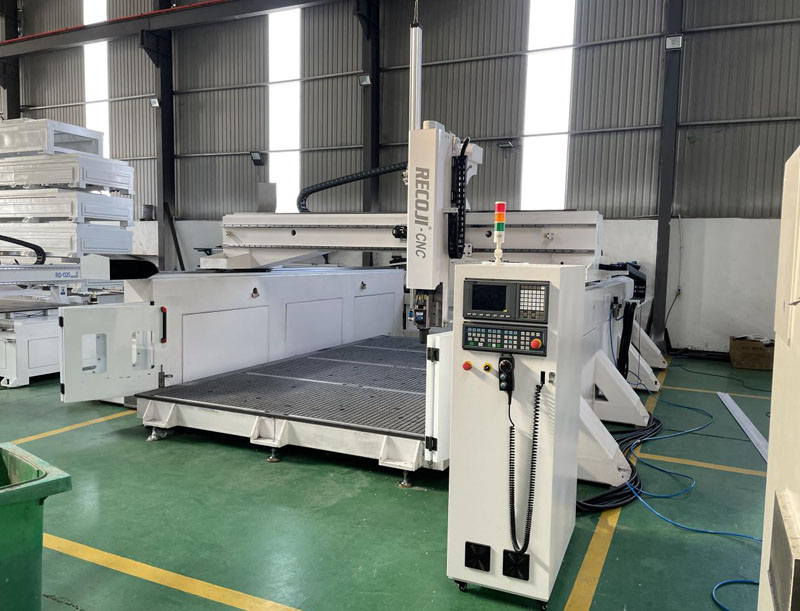

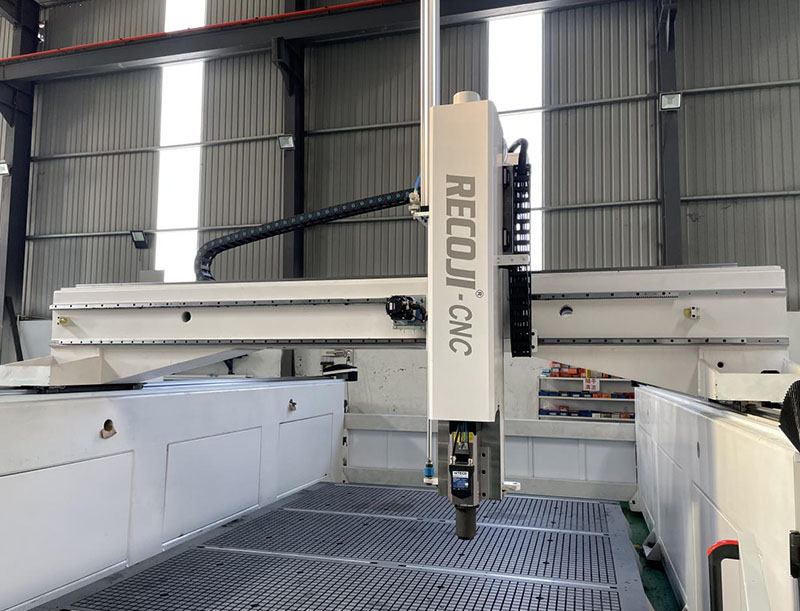

This machine is designed for making foam and wooden mold. It is qualified for large and medium-sized three-dimensional surface modeling.
High Z axis clearance allows making large industrial wooden mold, 3D foam mold, architectural decoration, large sculpture,etc.

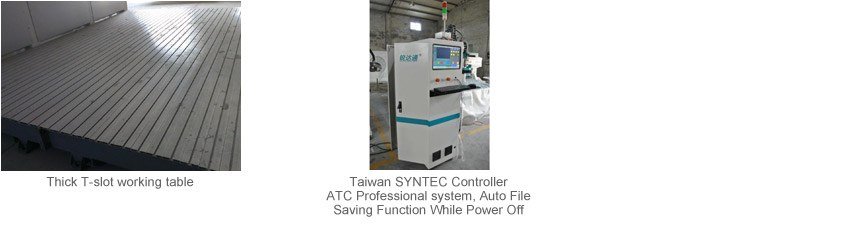

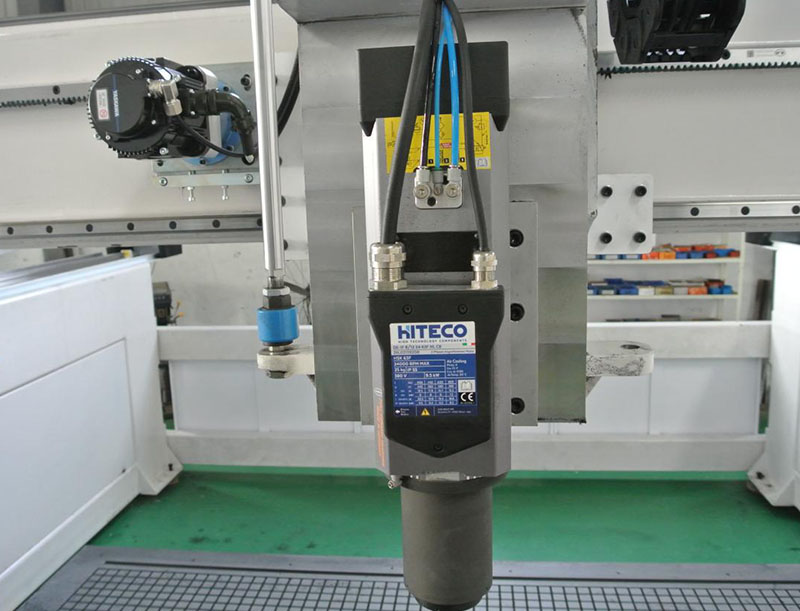

Top-quality components: HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.
Advantage

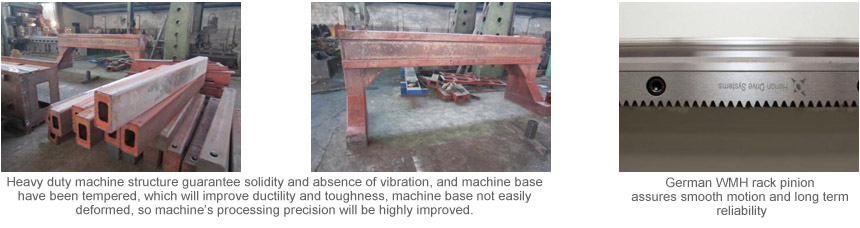

1. Heavy duty machine structure guarantee solidity and absence of vibration, and machine base have been tempered, which will improve ductility and toughness, machine base not easily deformed, so machine’s processing precision will be highly improved.
2. High Z axis clearance allows making large industrial wooden mold, 3D foam mold, architectural decoration, large sculpture,etc.

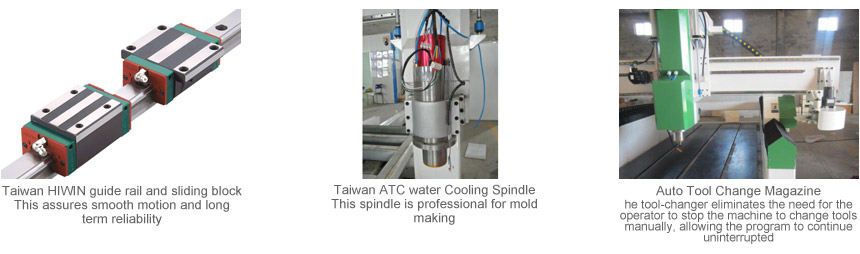

3. Carousel type ATC with 10 position:
The ATC allows the machine to cut complete projects where different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings without stopping to manually change bits.

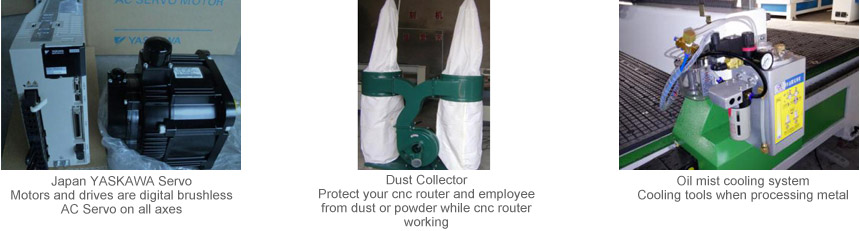

4. Japanese AC servo motors and drives
The closed-loop control of position, speed and torque is realized, improving precision.
Rotated speed can up to 3000RPM, good high speed performance
Heat and noise significantly reduced
Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly
Applicable industries

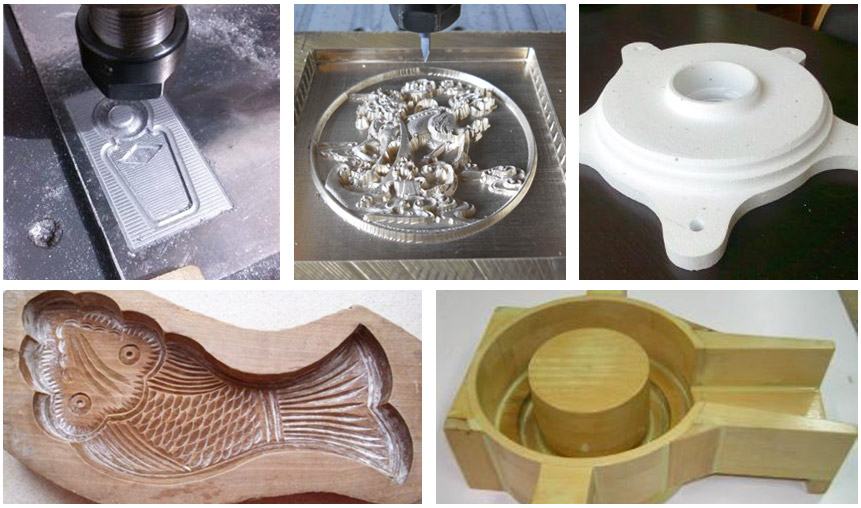

Molds industrial: large nonmetallic molds, especially auto foam molds, wooden ships molds, aviation and train wood molds. And wood mold casting, food mold (such as moon cake mold) and other precision mold making.
This kind of cnc router machine is mainly used for mould making ,such as eps foam mould ,thermocole /polyfoam mould ,wood mould for casting industries ,car design ,and so on.
