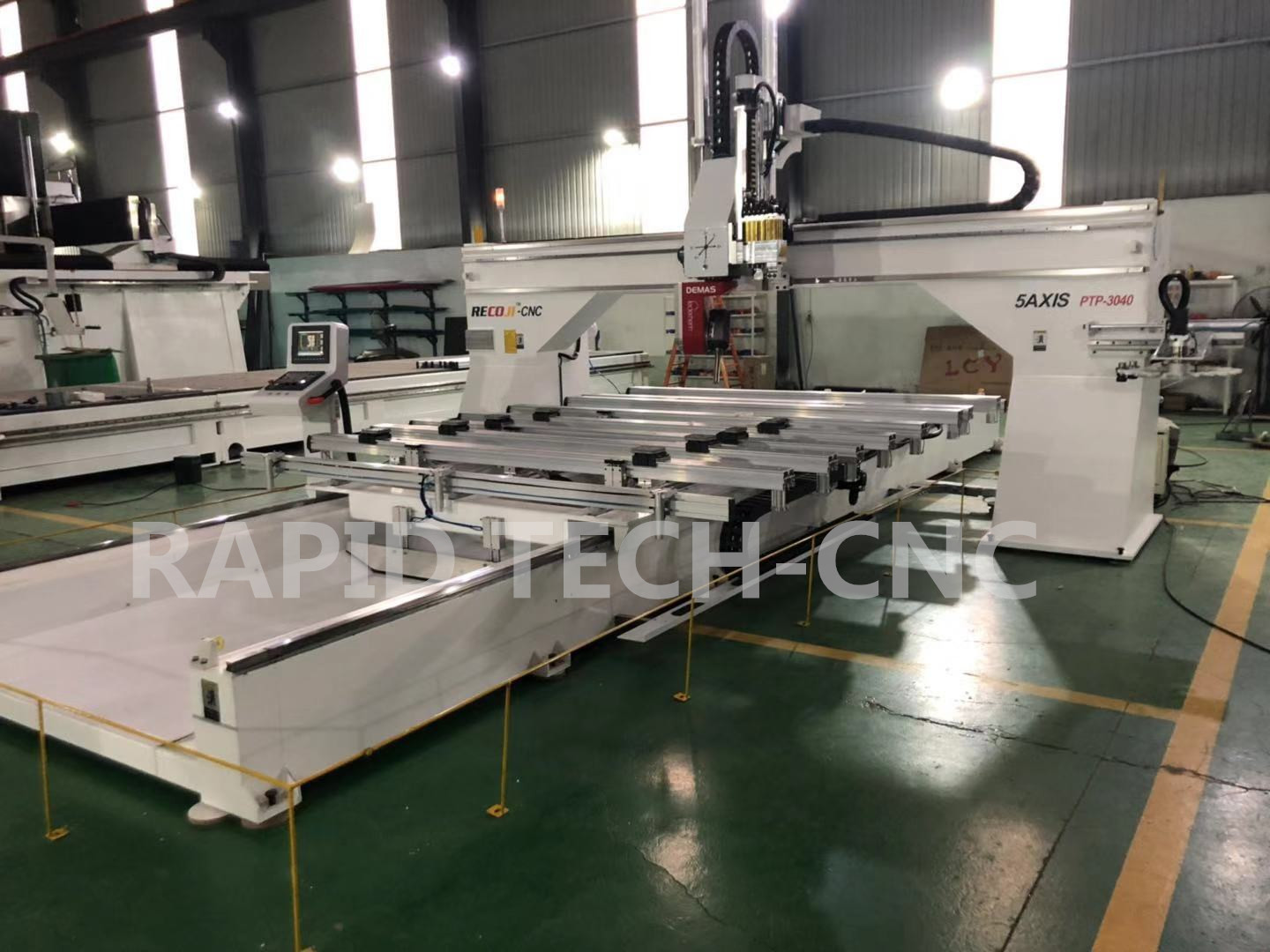

PTP-2040 5 AXIS CNC ROUTER

PTP-2040 5 axis CNC router is designed for mold and furniture industry. And it is best suited for applications that require faster feed speeds and higher accuracy.
It is equipped for multifunctional use and is perfect for rational production of simple and complex case parts in continuous operation.
The PTP working table offers maximum flexibility in all areas of machining; even work-pieces with complicated shapes can be clamped quickly and easily.
This style machine can be configured with multiple tables moving in the long or short direction.
The bridge can be configured with different Z clearances and stokes depending on the application.



  • Overview
  • Configuration
  • Video
  • Samples
  • OVERVIEW:
    PTP-2040 5 axis CNC router is designed for mold and furniture industry. And it is best suited for applications that require faster feed speeds and higher accuracy.
    It is equipped for multifunctional use and is perfect for rational production of simple and complex case parts in continuous operation.
    The PTP working table offers maximum flexibility in all areas of machining; even work-pieces with complicated shapes can be clamped quickly and easily.
    This style machine can be configured with multiple tables moving in the long or short direction.
    The bridge can be configured with different Z clearances and stokes depending on the application.

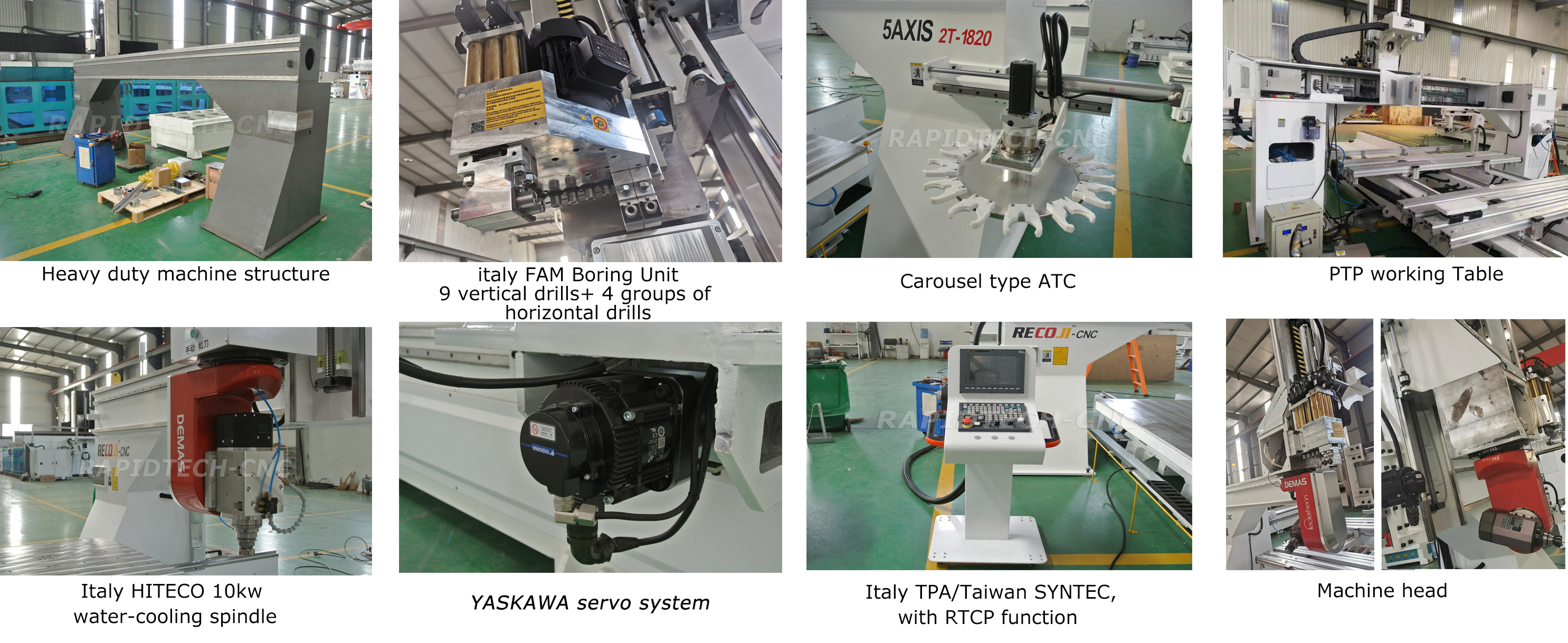

    Advantage:

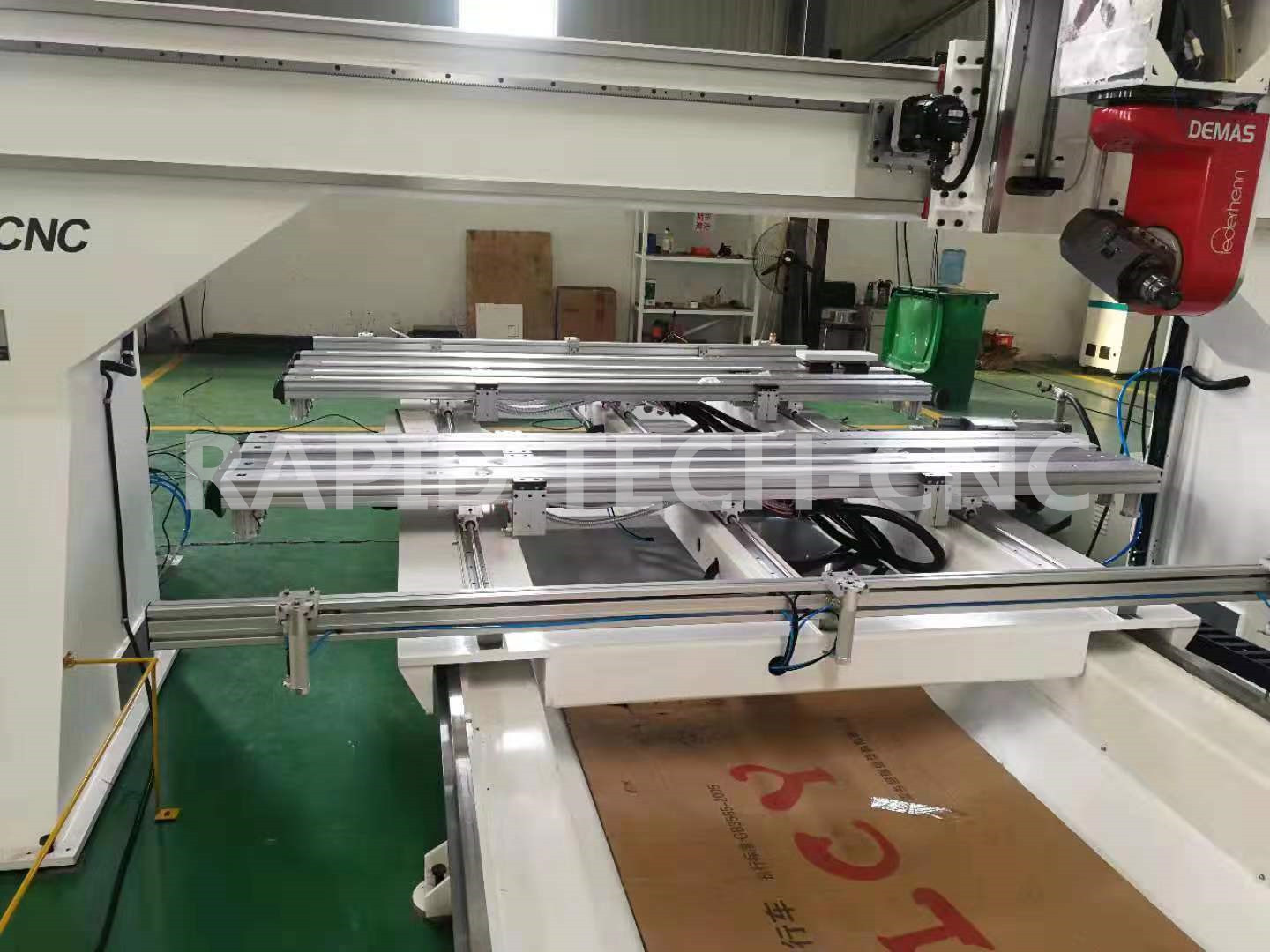

    • The PTP working table offers maximum flexibility in all areas of machining; even work-pieces with complicated shapes can be clamped quickly and easily

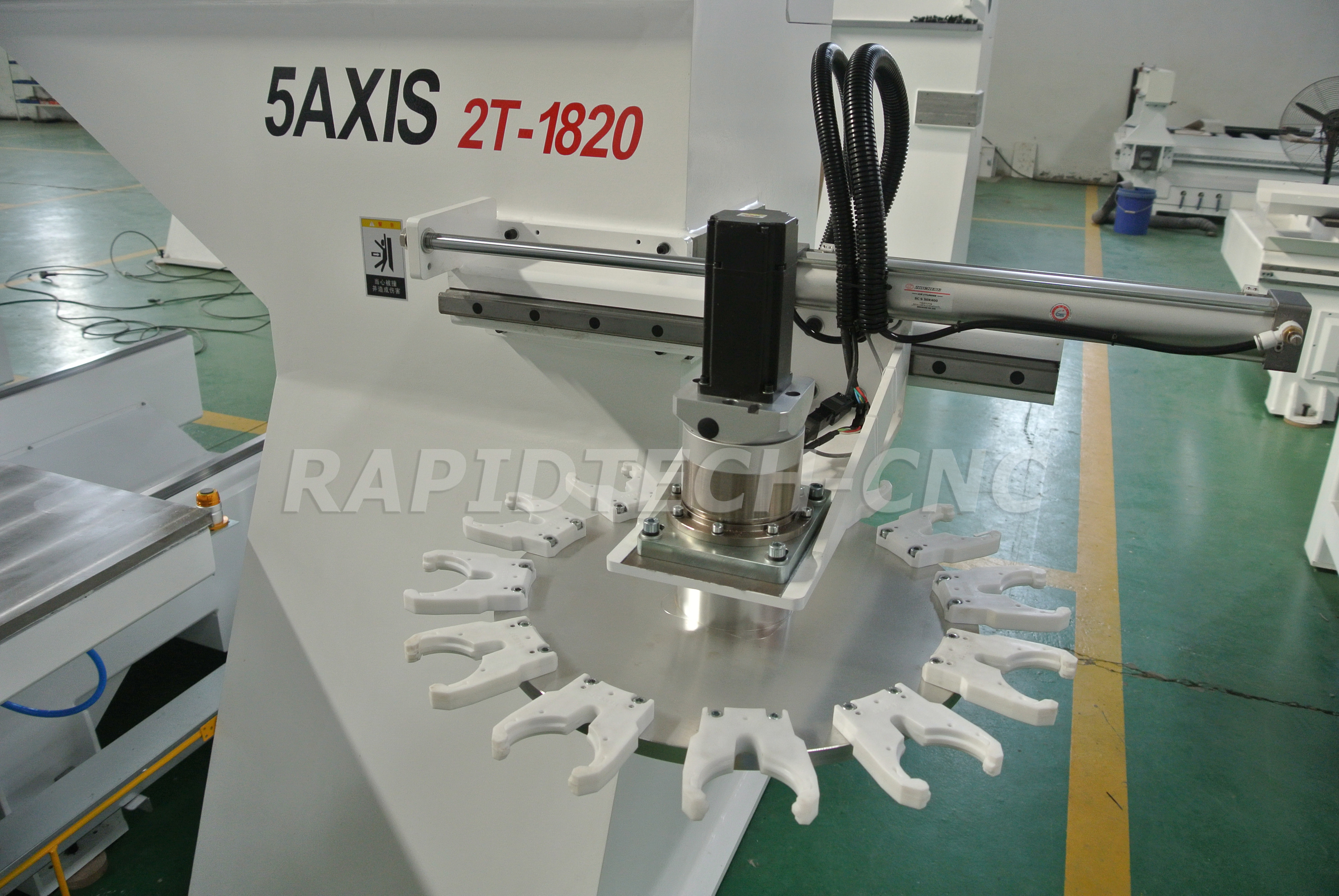

    • Automatic Tool Changer carousels are positioned on the side of the gantry for easy access for changing tools.
    • YASKAWA servo system: These motors are built to last and provide the necessary power to the machine.  The torque curves are specifically designed for each individual application to ensure power is available when needed.
    • Construction
    1. Welded steel stress-relieved bridge fabrication
    2. Cast iron casting for heavy duty vertical ram
    • High-reliability controlling system is provided by Italy TPA/Taiwan SYNTEC, with RTCP function, optimize routing path.

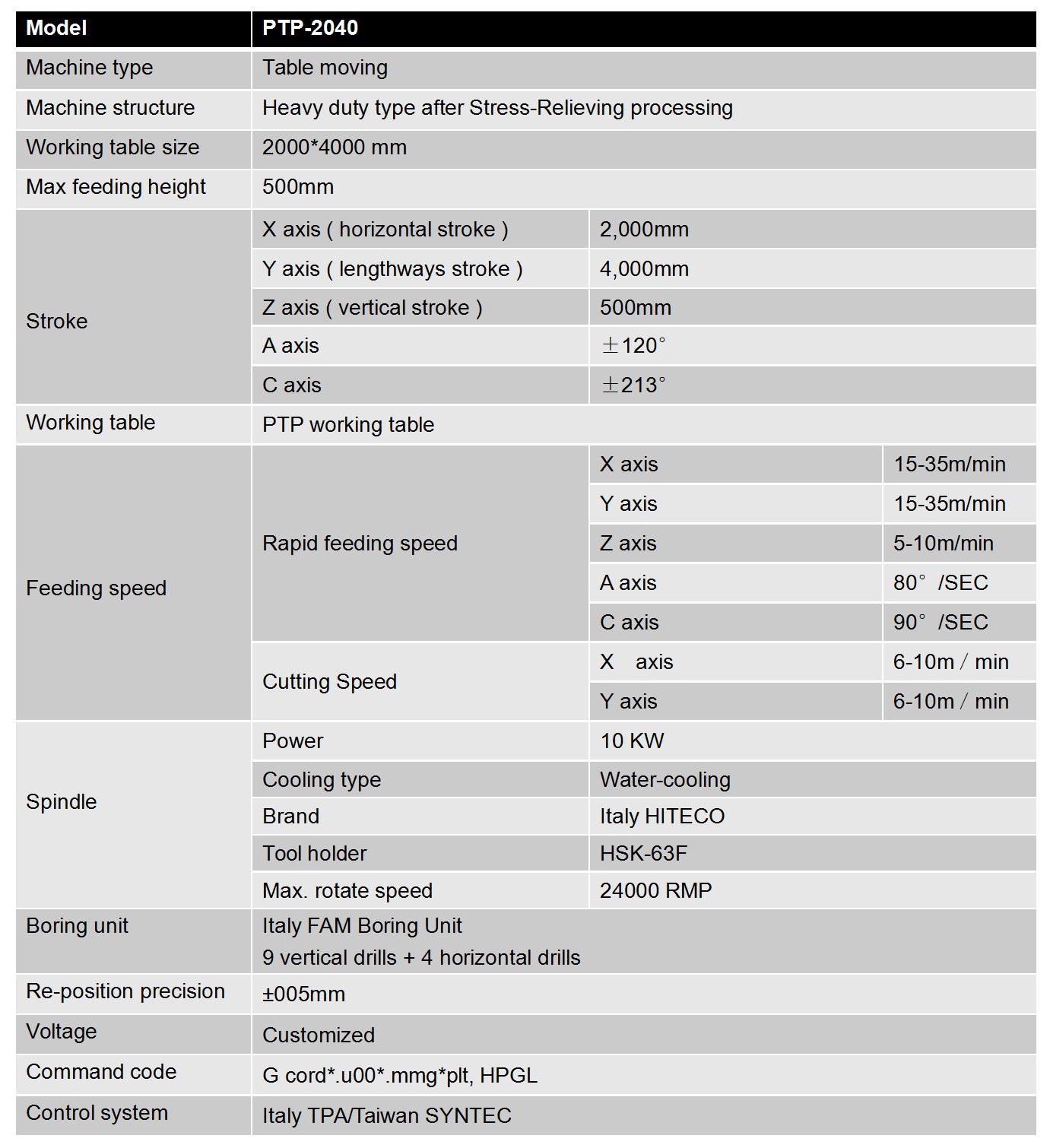

  • Configuration:
