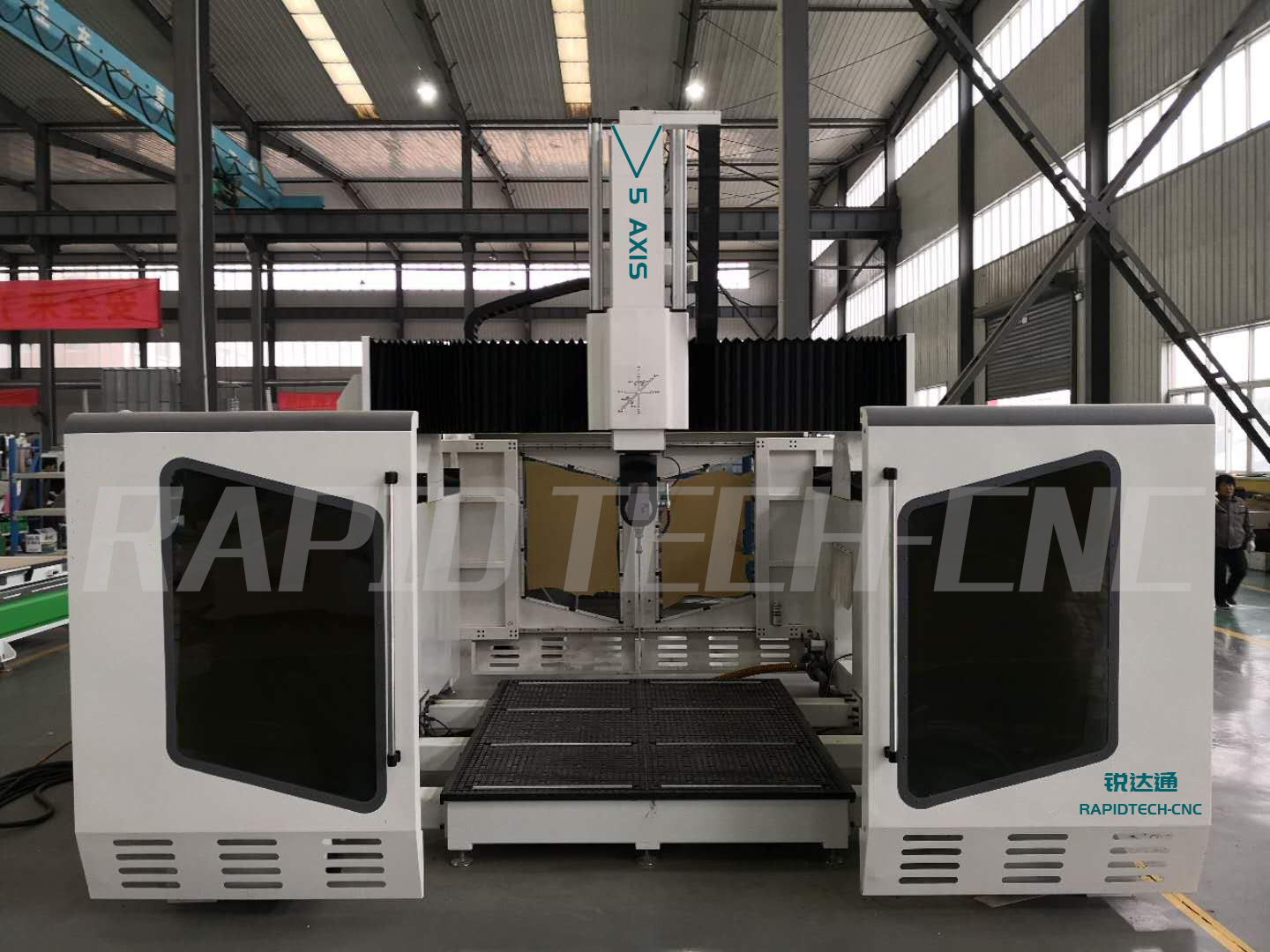

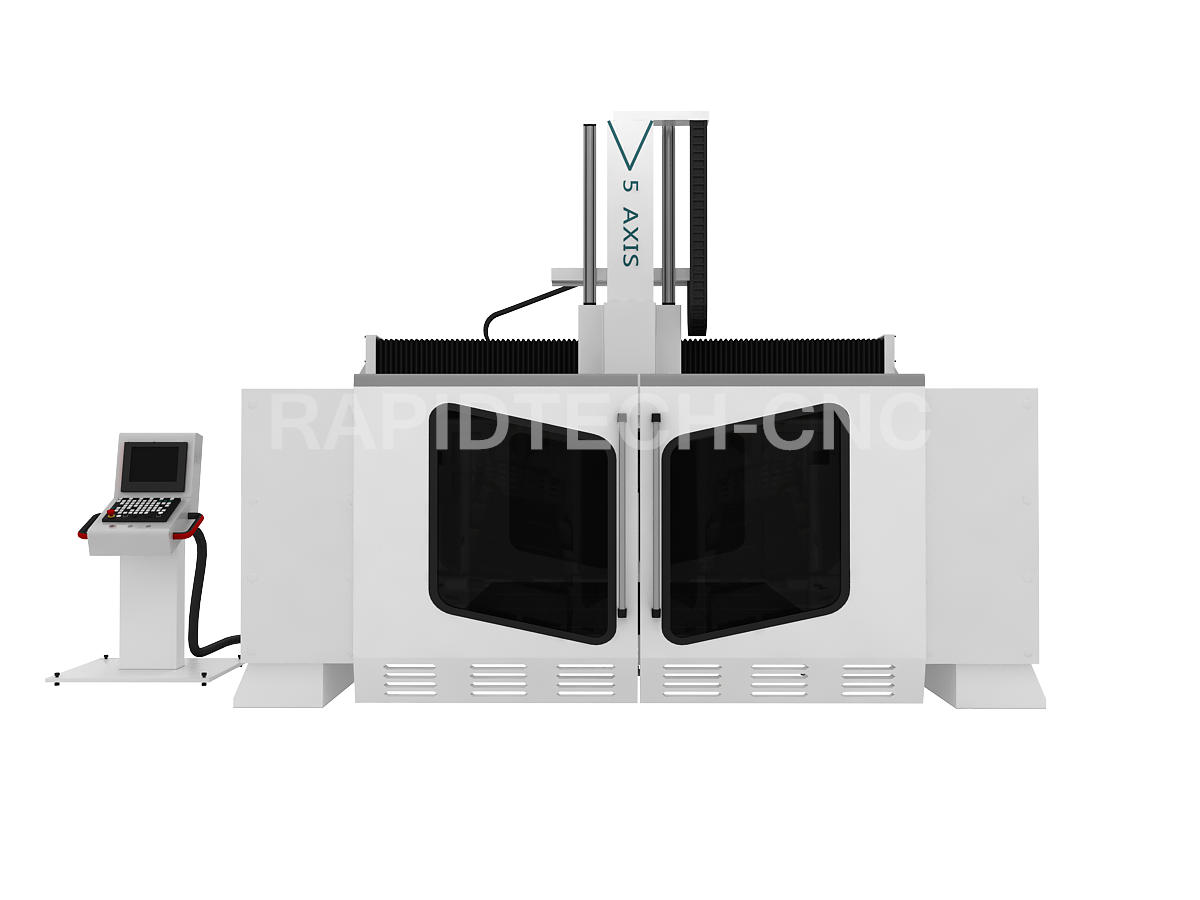

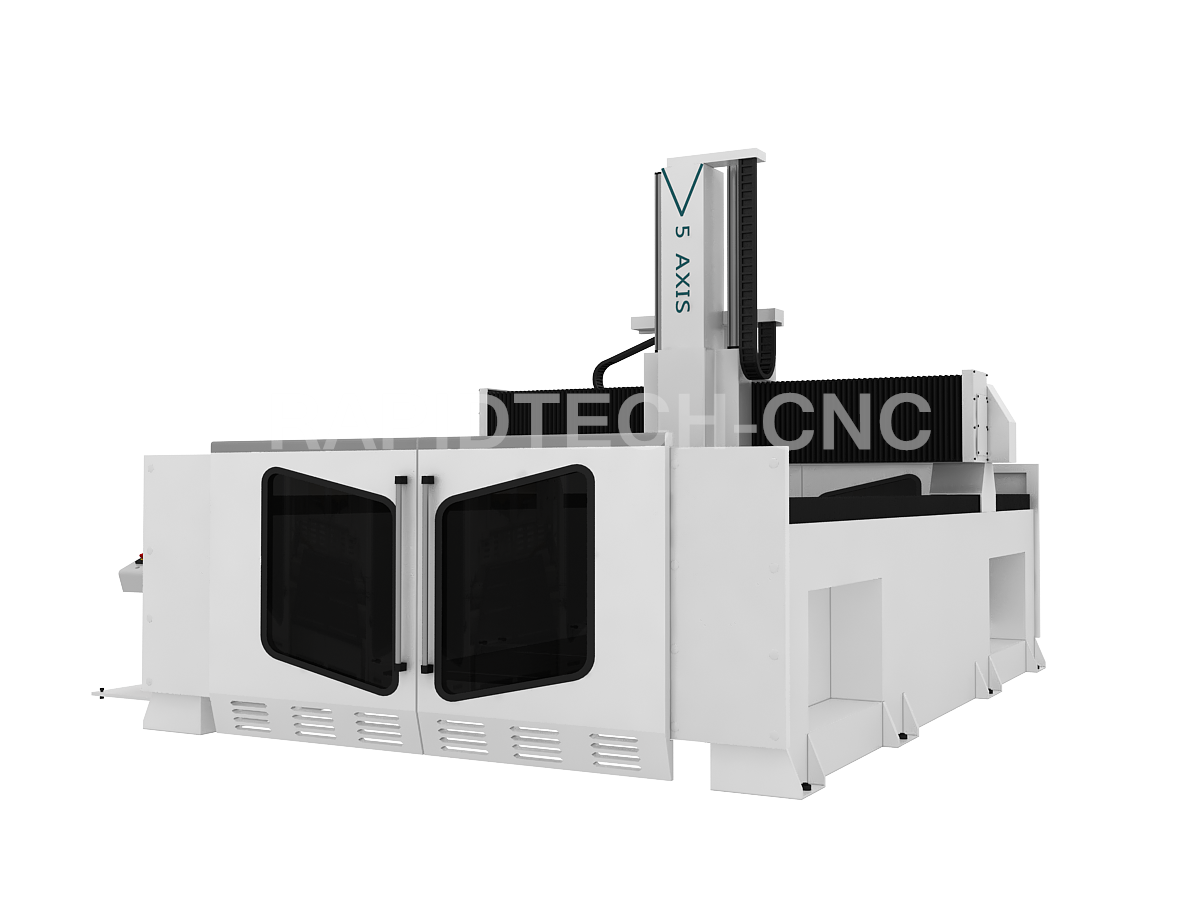

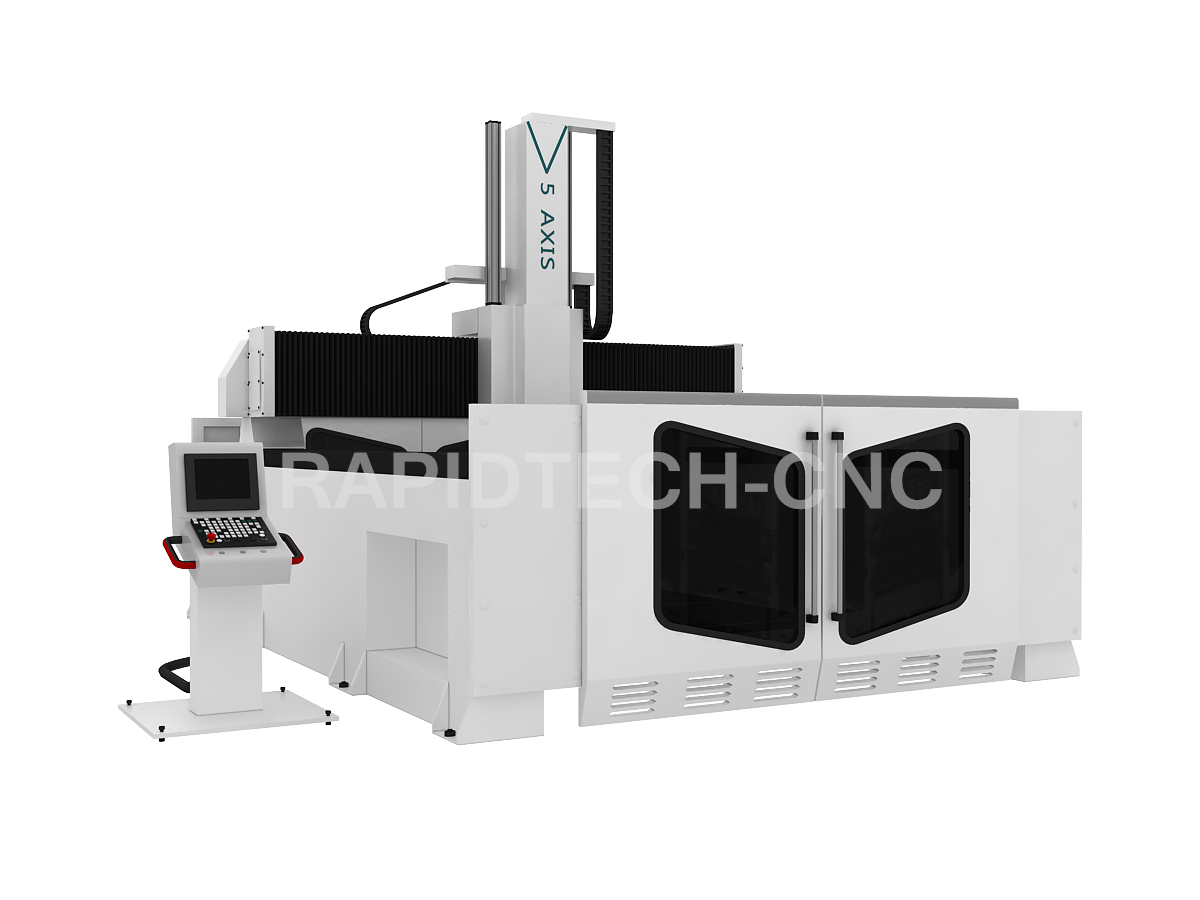

RAPIDTECH 5 AXIS CNC ROUTER


This machine is very suitable for large-scale processing such as green energy industry, shipbuilding industry, mold making industry, aviation industry, statue engraving, etc
It can process non-metallic materials such as carbon fiber, glass steel, composite materials, PMI foam, polyurethane foam, functional foam, resin, wood substitute, honeycomb, plastic, oil sludge, and soft metals such as aluminum alloy.
Machine is designed for high-speed, heavy-duty routing,  Its all-steel frame means it’s durable and long-lasting, and that vibration gets eliminated so you always have a nice and smooth cut.

E-mail Offer
Related Products
Related Products
  • Overview
  • Configuration
  • Video
  • Samples

  • Overview:
    This machine is very suitable for large-scale processing CNC machinery such as green energy industry, shipbuilding industry or aviation industry.
    It can process non-metallic materials such as carbon fiber, glass steel, composite materials, PMI foam, polyurethane foam, functional foam, resin, wood substitute, honeycomb, plastic, oil sludge, and soft metals such as aluminum alloy.

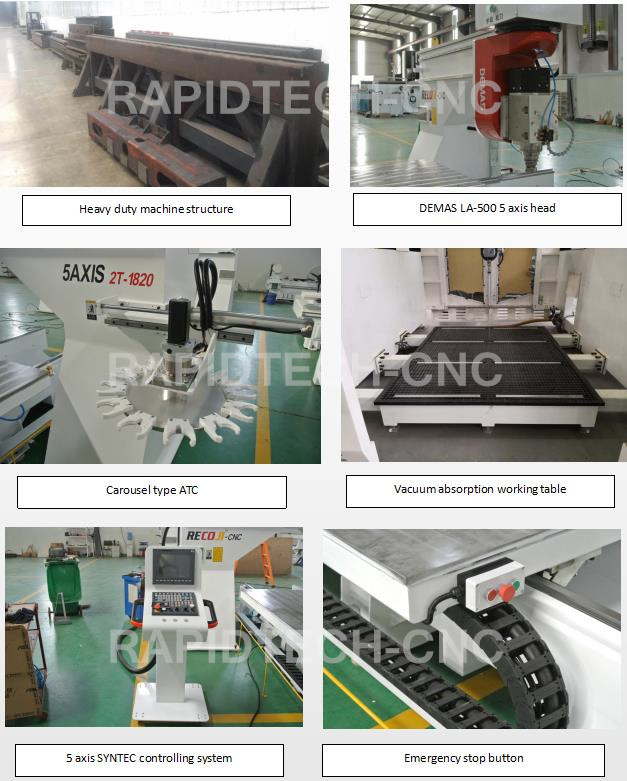

    Advantage
    1. Adopt Italy 5 axis spindle.
    2. Heavy duty machine structure guarantee solidity and absence of vibration, so machine’s processing precision will be highly improved.
    3. Z axis’s feeding height is 1000mm, which allows extra large parts to be processed, and this size can be changed according to your practical needs
    4. Top-class components, to make the machine high-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors


    Application
    ● Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.
    ● 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.

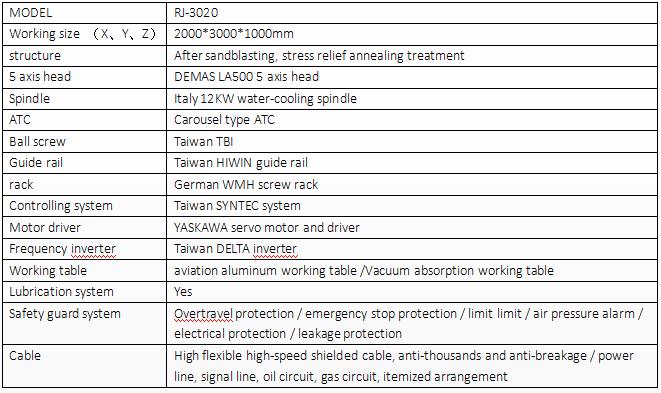

  • Parameter:


    Configuration:
