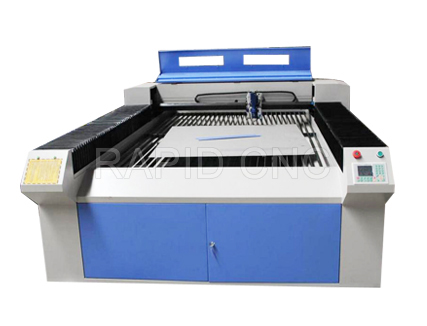

RD-1325 Metal and nonmetal laser cutting machine

Overview

RD1325 and RD 1530 metal and nonmetal cutting machine with high configuration can cut stainless steel /carbon steel /acrylic /MDF, and with oxygen assistant, it can do a good cutting effect.

Features

1,The integration of high strength frame type lathe bed structure, good rigidity, ensures the high stability of the equipment.

2,Guide rail base with high precision gantry, and adopts imported linear guide rail, installation and debugging adopt precision collimator test, ensure the high speed and high precision.

3,A new advanced design, unique closed constant light path structure.

4,with big power smoke exhaust system, more thoroughly and clean.

5,The mixture of machine cutting ability: for stainless steel, carbon steel, acrylic, and the board can be cut.

6,Machine precision: imported servo, with imports of ball screw transmission, greatly improves the response speed, prolong the service life of the product.

7,The constant light path system: this machine adopts the constant light path system, for the first time realized the full width and high precision cutting.

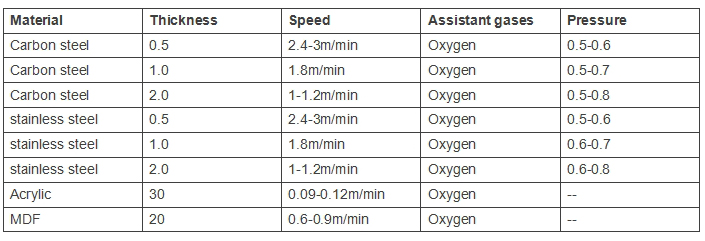

Application Materials:stainless steel /carbon steel /acrylic /MDF ……

Application industry:advertising, architecture, model, leather goods, furniture, packaging, decoration and other industries.
