Overview

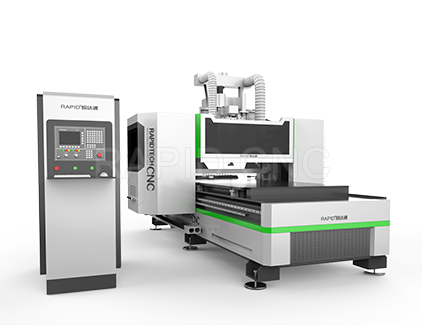

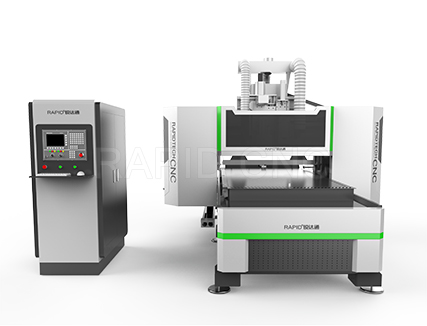

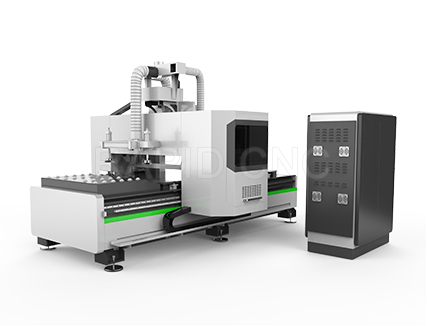

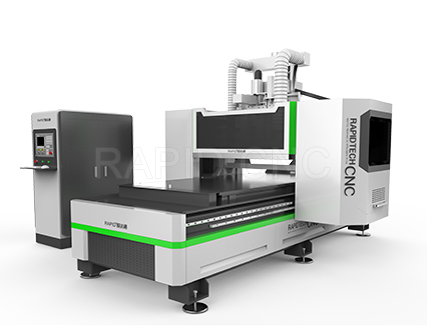

RAPID1325 CNC Router is perfect for cabinet, door making industry, it can finish drill, cut, carve, hollow out, chamfer,  bevelling,etc.

Machine is equipped with large power ATC spindle and tool magazine, which can complete complex multi tool task efficiency. So your complex program won’t let you down, with 15 seconds tool changes, machine will keeps your production moving.

Advantages

1. Machine can be used with output optimize software, like Cabinet Vision, for nest cutting, all the holes are generate automatically in software, saving material and labor cost. This is a nested based routers.

2. Italy boring unit is designed to bore vertically and horizontally on panel board. Other combination of boring unit can be customized for you based on your practical need.

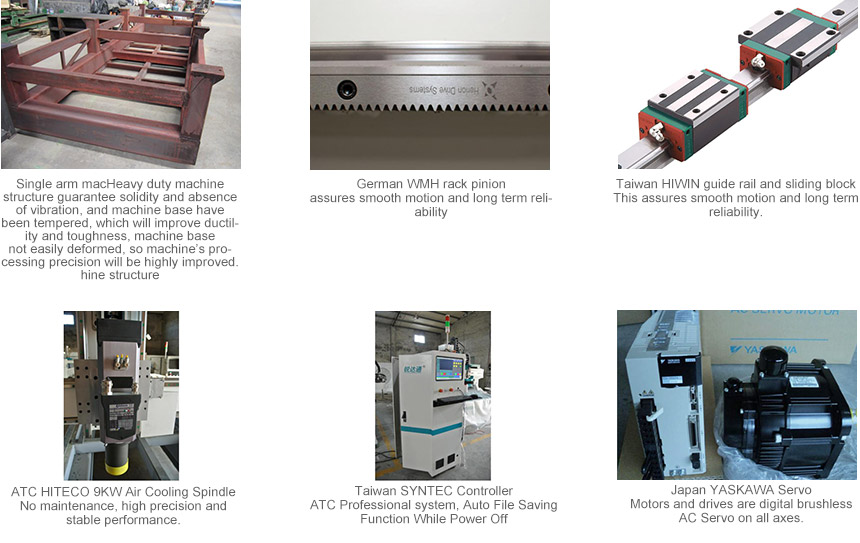

3. Heavy duty machine structure guarantee solidity and absence of vibration, and machine base have been tempered, which will improve ductility and toughness, machine base not easily deformed, so machine’s processing precision will be highly improved.

4. The 10 tool rotary carousel allows CNC Router to complete highly complex jobs with multiple tools with no user interaction.

5. Japanese AC servo motors and drives

The closed-loop control of position, speed and torque is realized, improving precision.

Rotated speed can up to 3000RPM, good high speed performance

Heat and noise significantly reduced

Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly

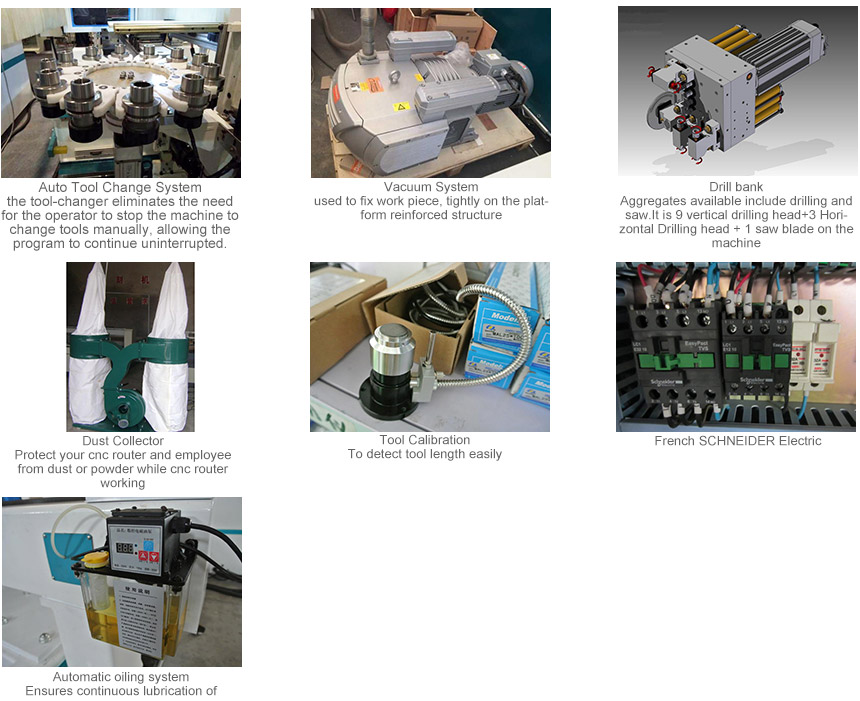

6. There has other optional accessories for your reference:

Like: ball loading platform, panel pushing device, loading and unloading device,etc.

More information please feel free to contact us!!

​

Application industry

Furniture industry: solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden speaker and kitchenware, etc.

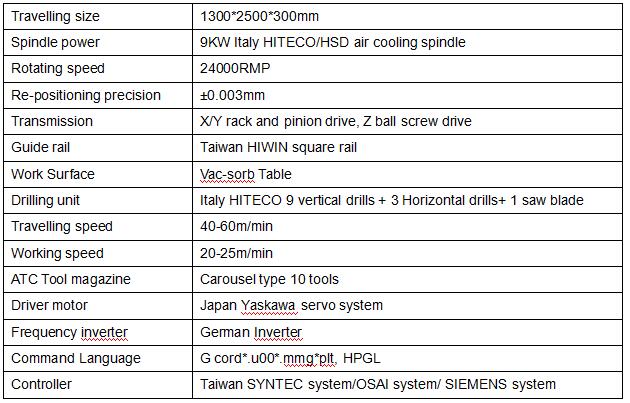

Parameter

Configuration

Samples
