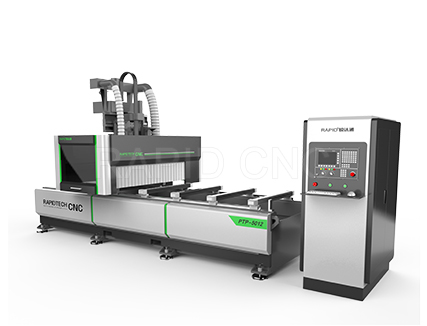

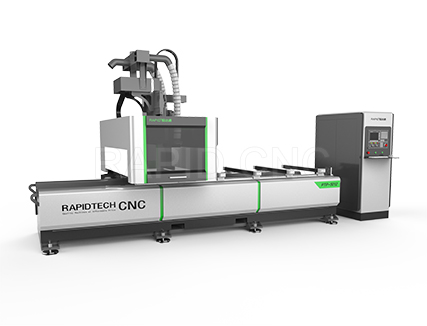

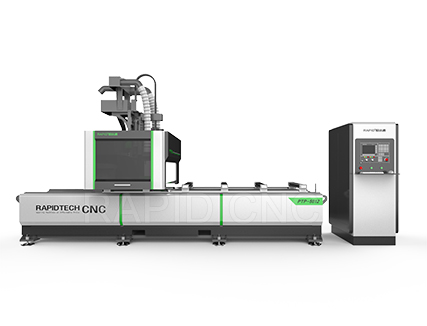

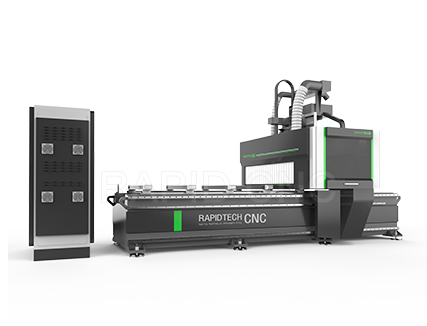

Single arm PTP CNC Router

This machine is very suitable for large and medium-sized companies, which can meet diversified processing needs, such as five side drilling, slotting, panel unloading, side slotting,etc

Ideal for combined solid wood door, solid wood archy door and window, solid wood decorative frame,etc

There has 8 tool positions on the rear of machine, which is for clamping profile cutter. It will allows operator to produce solid wood door. Complete the most complex multi tool tasks more efficiency

C axis and aggregate head is optional.

  • Overview
  • Configuration
  • Video
  • Samples
  • Overview

    This machine is very suitable for large and medium-sized companies, which can meet diversified processing needs, such as five side drilling, slotting, panel unloading, side slotting,etc

    Ideal for combined solid wood door, solid wood archy door and window, solid wood decorative frame,etc

    There has 8 tool positions on the rear of machine, which is for clamping profile cutter. It will allows operator to produce solid wood door. Complete the most complex multi tool tasks more efficiency

    C axis and aggregate head is optional.



    Advantages

    1.An all-rounder work center suitable for five side drilling, slotting, panel unloading, side slotting,etc

    2.Generating drilling hole accurately, working efficiency of this machine is equal with 3-4 sets of traditional six-row boring machine

    3.Heavy duty machine structure guarantee solidity and absence of vibration, and machine base have been tempered, which will improve ductility and toughness, machine base not easily deformed, so machine’s processing precision will be highly improved.

    4. Italy boring unit is designed to bore vertically and horizontally on panel board. Other combination of boring unit can be customized for you based on your practical need.

    5. The adjustable Multi-Clamp and movable beams are the perfect tool for manual fixing of small and medium-sized workpieces.

    6. Double work zones guarantee non-stop work cycle--operator can load and unload workpiece on one zone without interrupting the machine operation on the other.

    7. Single arm type will easily for load material from one side.

    8. This machine has disk type ATC tool magazine,capacity is 10,tool change time is only 8 seconds,engraving speed:20 meters per minute.

    There has 8 tool positions on the rear of machine, which is for clamping profile cutter. It will allows operator to produce solid wood door.



    Application industry

    Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.

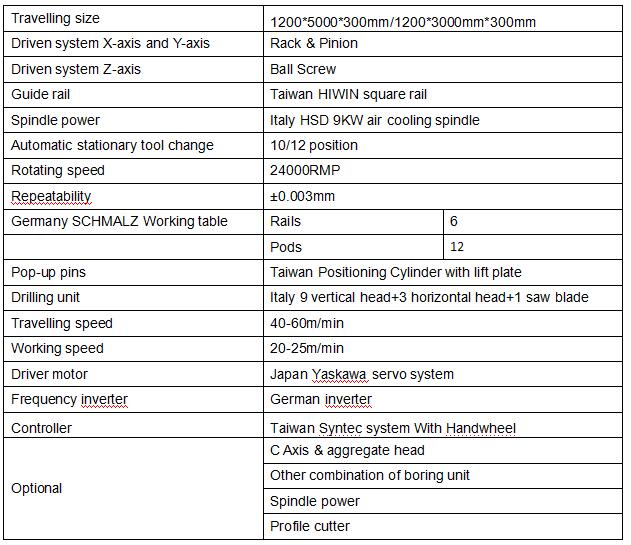

  • Parameter

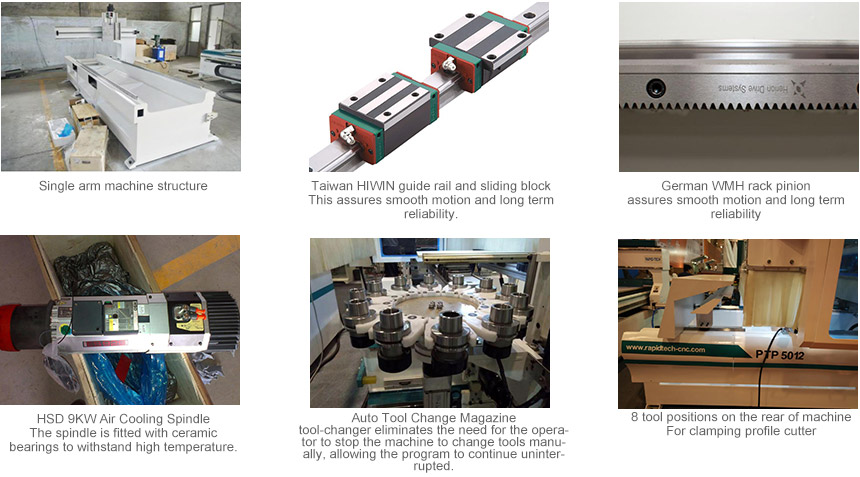

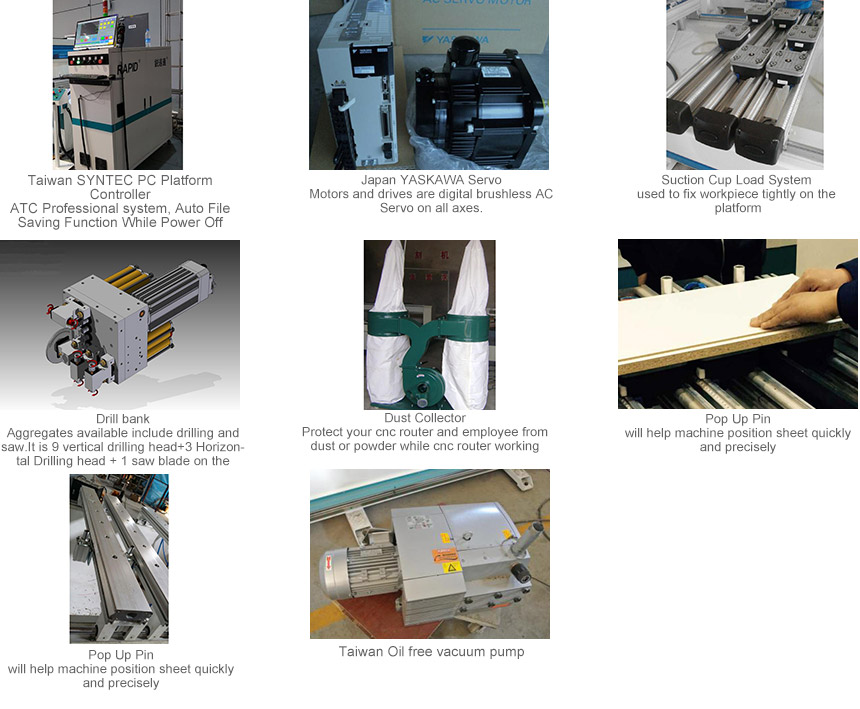

    Configuration

  • Samples
